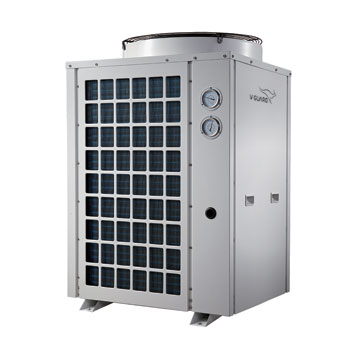

Commercial Heat Pump Series

V-HP 1 / V-HP 1.5T / V-HP 2T / V-HP 3T / V-HP 5T / V- HP 6T / V-HP 10T / V-HP 15T

(Perfect for Hospitals, Hostels, Hotels & Industrial Hot Water Needs)

Commercial environments need easy access to hot water — and the Commercial Heat Pump Series delivers energy-efficient, high-performance hot water, even when the outside temperature is below zero.

Designed as a “fit-and-forget” unit with best-in-class safety, reliability, and energy savings, it’s ideal for demanding commercial applications

Salient Features

• Designed for Hospitals, Swimming Pools, Hotels/Resorts & Industrial Use.

• High Efficiency Tube-in-Shell Heat Exchanger — better COP & lower operating cost.

• Stable Output Temp: 55 – 60 °C.

• Automatic Defrost for reduced maintenance.

• Works across a wide ambient temperature range (–15 °C to 43 °C).

• MODBUS Communication — easy BMS integration.

• Eco-friendly R410a Refrigerant.

• High Pressure Protection & Anti-corrosive Body.

Get a Quote

Our Services

Experience Soft Water Every Day

Request a Quote Today

72990 26313

Technical Specifications

Model	V-HP 1T	V-HP 1.5T	V-HP 2T	V-HP 3T	V-HP 5T	V-HP 6T	V-HP 10T	V-HP 15T
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	380V/3/50Hz	380V/3/50Hz	380V/3/50Hz	380V/3/50Hz
Heating Capacity (kW)	4.1	6.2	8.6	12	21	28	43	55
Power Input (kW)	0.97	1.46	2.03	2.82	4.9	6.5	9.9	12.6
COP	4.21	4.26	4.24	4.25	4.29	4.28	4.34	4.47
Max Power Input (kW)	1.45	2.01	2.75	3.35	6.9	9.2	13.2	16.6
Max Current (A)	6.5	9.1	12.5	15.2	12.3	16.4	23.5	30.2
Rated Hot Water (L/h)	100	150	200	300	515	690	1050	1380
Refrigerant	R410a
Working Temperature	-15°C ~ 43°C
Noise (dB)	47	49	52	53	≤60	≤60	≤65	≤65
Warranty	2 Years
